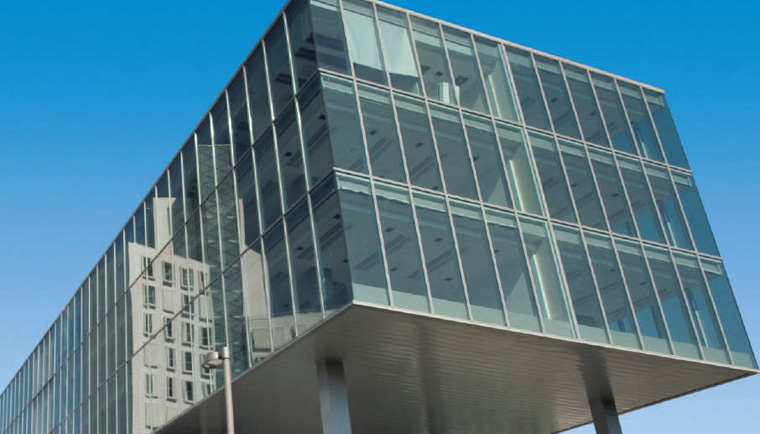

Type: Unitized curtain wall

Function: An outer maintenance system for high-rise buildings

Application place: Office building; Shopping mall; Hospital; high-rise buildings

Material: Aluminium+Glass

Glass: Gouble glazing, Laminated glazing, Reflective glass. Any regular color is available

Openning way: Awning

Design: Subject to specific design

Unitized curtain walling and windows is a new system facades, The aluminium system is 100% prefabricated in factories,it saves quite a lot of time and cost in installation,it´s the most modern in Europe.

FEATURES:
Factory-assembled and –glazed
Shipped to the job site in units one lite wide by one floor tall
Only one field-sealed unit-to-unit splice
Only one anchor per mullion
Interlocking frame members are weather-stripped
Accommodates thermal expansion and contraction, inter-story differential
Installed in a sequential manner around each floor level, moving from the bottom to the top of the building.
